Mandrel bars are essential tools for many industries, and they play an important role in helping manufacturers create high-quality products. They are used to ensure the uniformity and accuracy of industrial pipes, tubes, and other metal products, and they help reduce waste and improve efficiency in the manufacturing process.
Detail

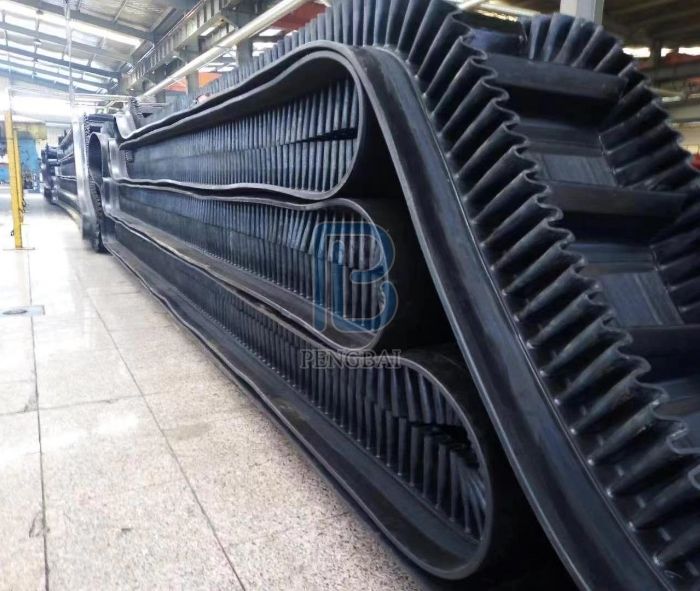

Sidewall Conveyor Belt is a type of conveying equipment used in industrial production. Its unique design enables it to maintain stable conveying effects during high-speed movement, while also effectively preventing the overflow of conveyed materials. If you are interested please feel free to contact thanks.

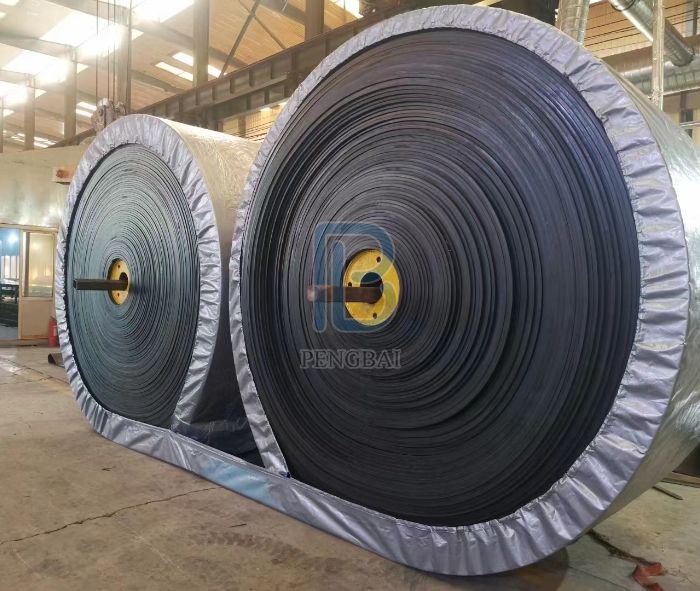

Conveyor belt is the main part of a conveyor, which plays a role in loading and transporting materials, and which is widely used in metallurgy, construction materials, wharf, mining industries.

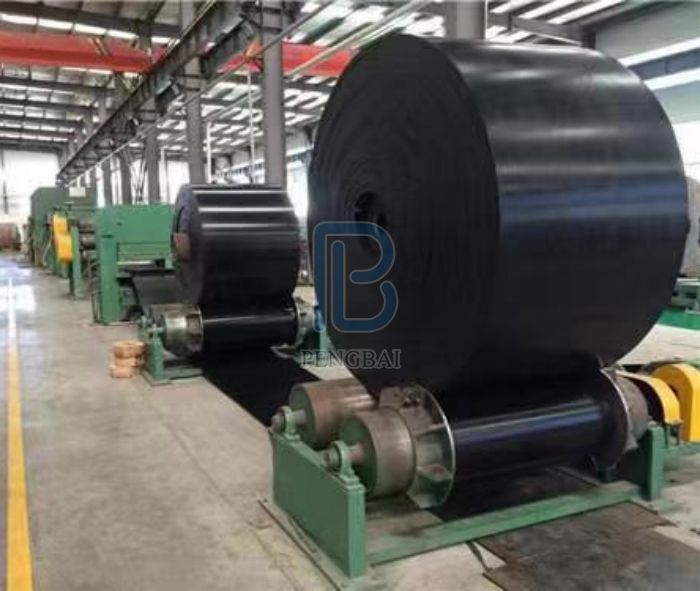

Heat resistant conveyor belts are mainly used to transport high-temperature materials, such as sintered ore, hot coke, cement clinker, hot castings, etc. According to the main manifestations of tropical damage and loss of conveying capacity, as well as different heat resistance levels.

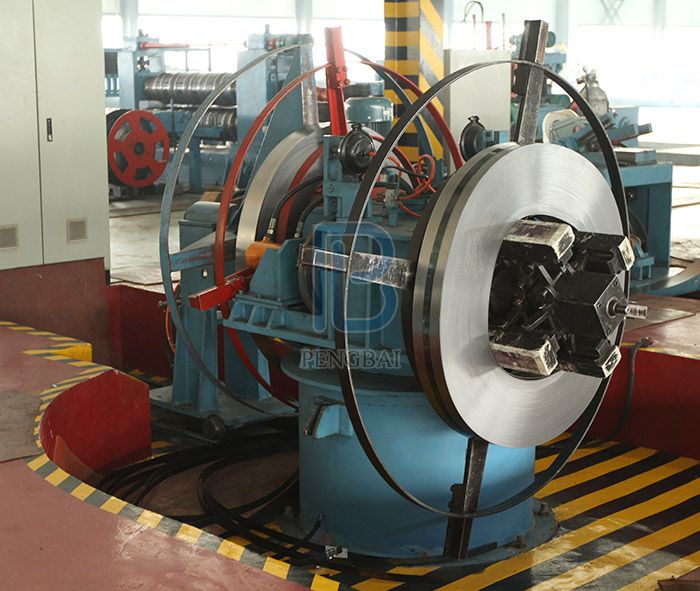

The uncoiler comprises a double expanding mandrel design and serves to unwind the coils with controlled uncoiling tension.
This is the facility to face and chamfer the both end of the round pipe.

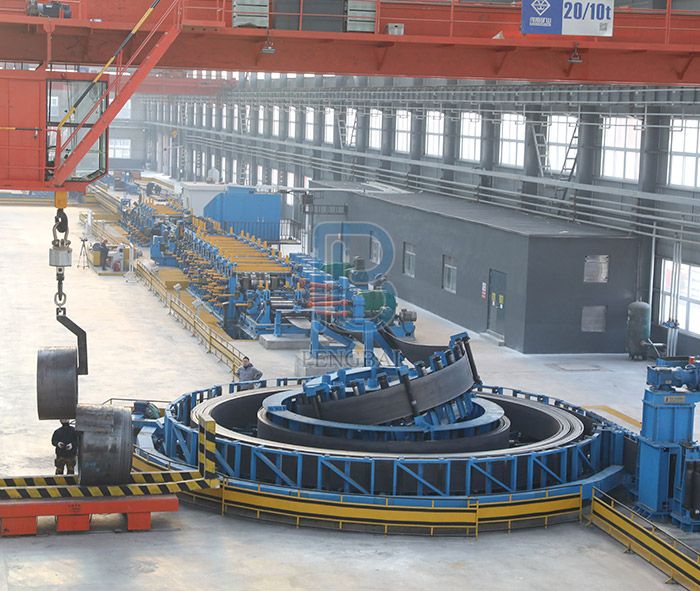

The accumulator is installed between the shear & welder and the forming line. Its purpose is to give enough time for feeding the new coil from uncoiler to shear & welder and for the shear & welder to cut and join front end of the new coil with tail end of previous coil.
Rolls are manufactured out of AISI D2, D3 or equivalent steel. Material is annealed, hardened and tempered to get hardness of 60 ± 2 HRC. Rolls profiles are precisely turned at high speed on CNC Turning machine using ceramic tips to get the desired surface finish.

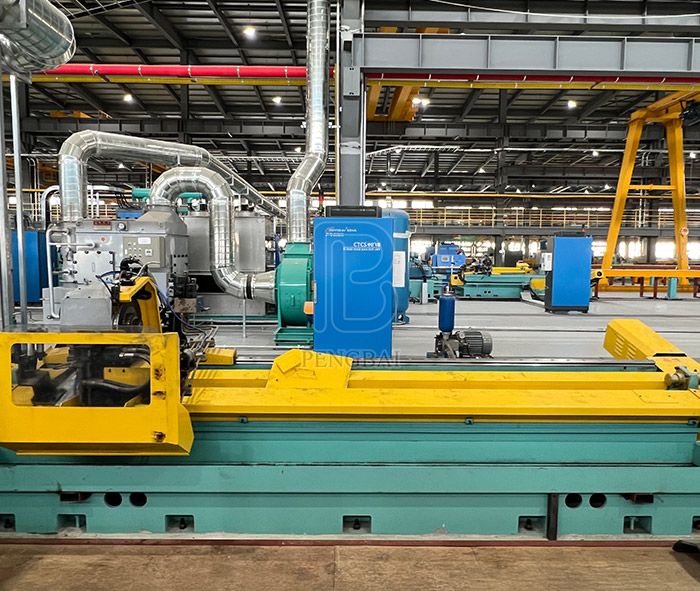

Flying Saw is to cut the pipe into a given length while it is traveling. In order to operate continuously, it is necessary to synchronize the cut off machine with the speed of the tube, so as to accurately keep the tubes length during the cutting cycle.
Entry section starts from uncoiler to accumulator, The coil is loaded to the uncoiler by crane. The coil tension and brake system between uncoiler and leveler shall be done. Hold down roll operated by hydraulic cylinders holds and rotates the coil for cutting the strap bend by peeler.
