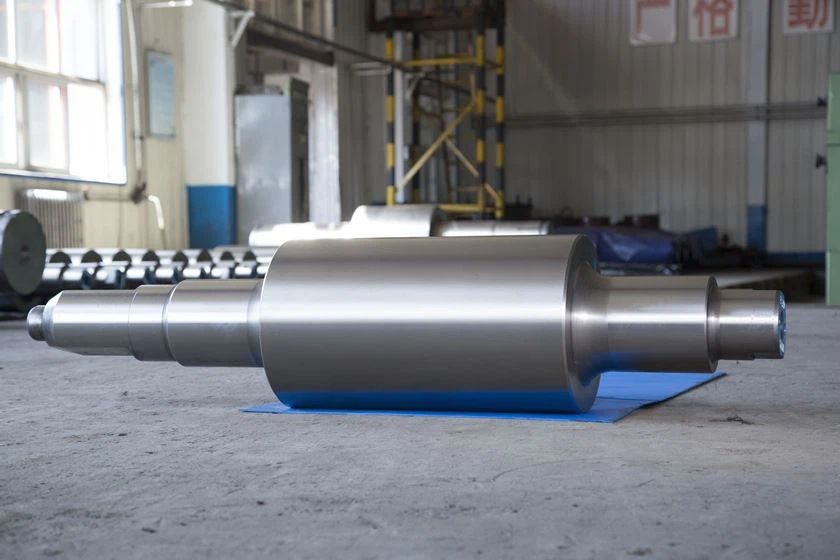

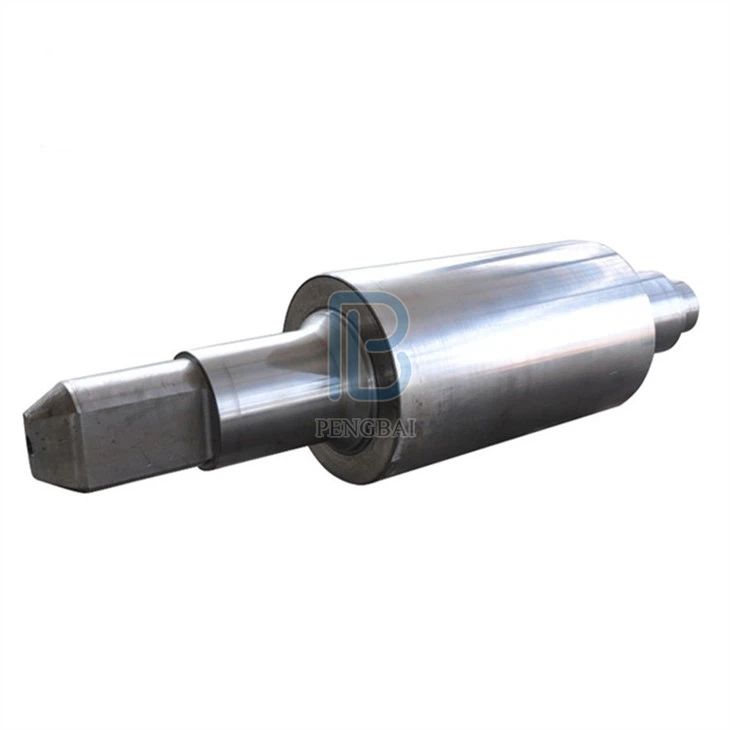

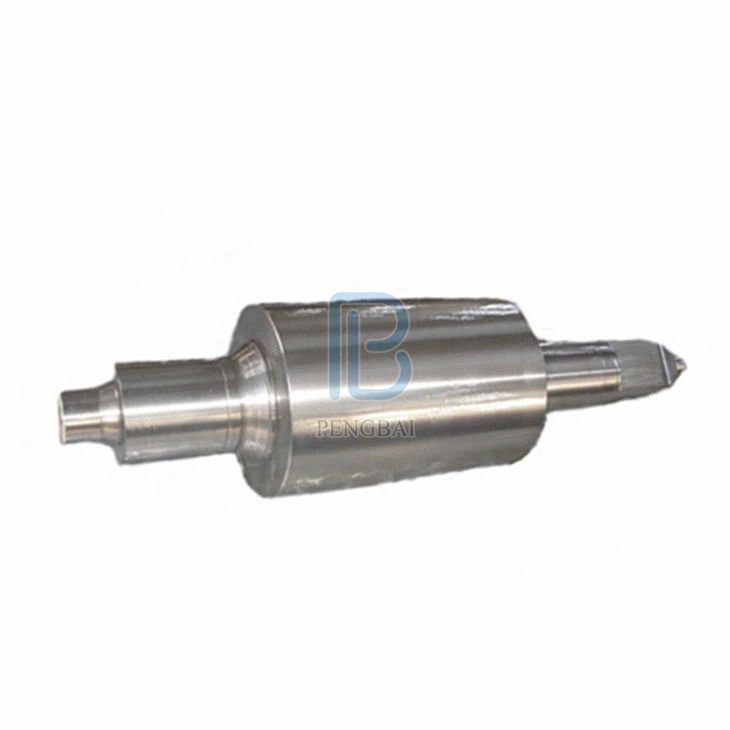

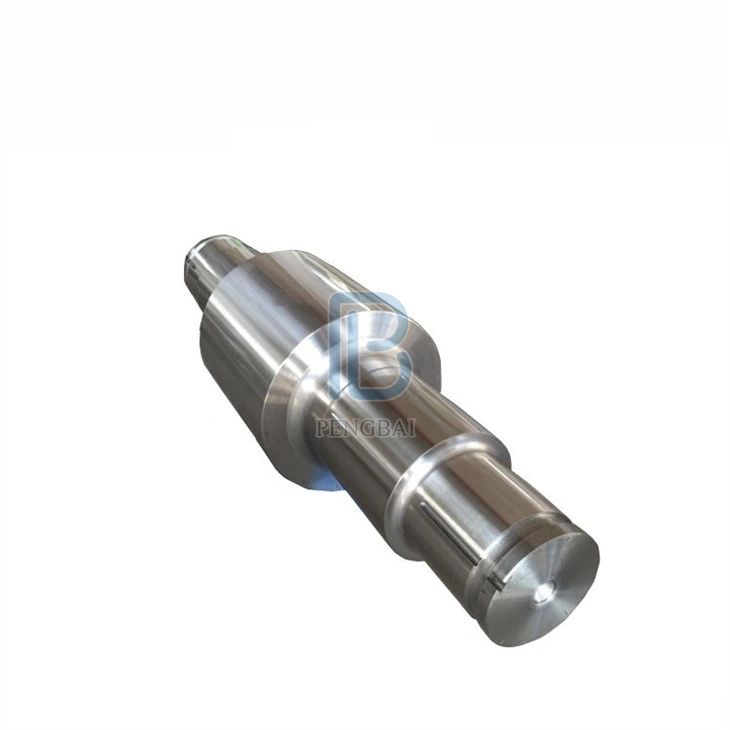

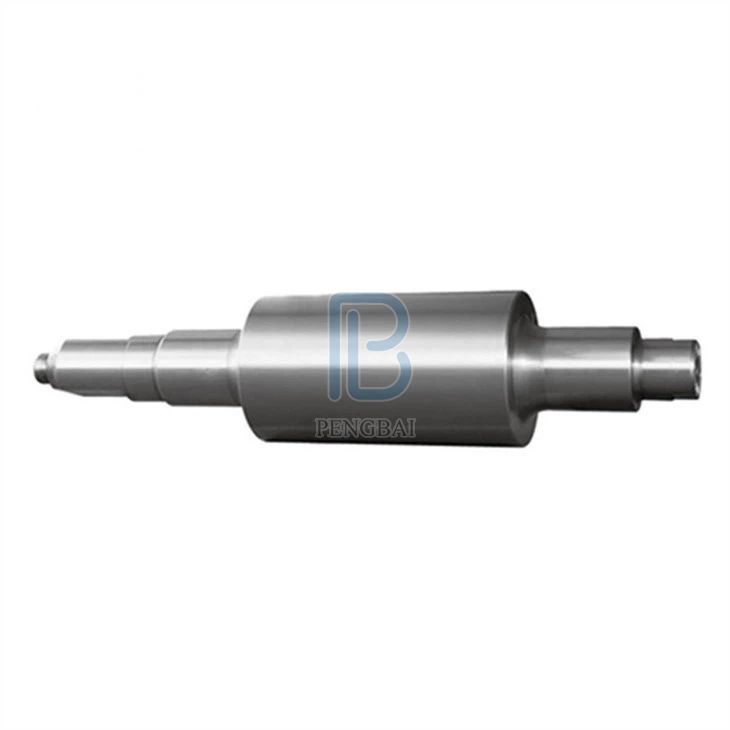

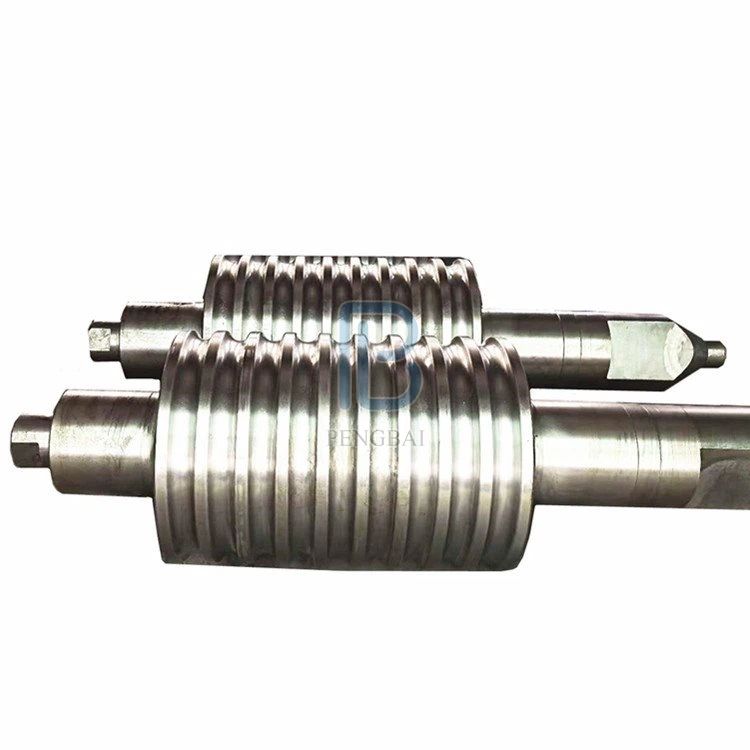

Acicular bainite ductile iron roll adding nickel, manganese, chromium, molybdenum and other alloying elements, it is a needle-like organization(martensite and bainite) matrix, higher than the pearlite ductile iron roll strength, toughness and more well, wear Sui has improved markedly.
Description
Acicular bainite ductile iron roll adding nickel, manganese, chromium, molybdenum and other alloying elements, it is a needle-like organization(martensite and bainite) matrix, higher than the pearlite ductile iron roll strength, toughness and more well, wear Sui has improved markedly. Can be static casting production. This feature roll is spherical graphite, its properties and indefinite chill roll alloy similar to its higher strength than the indefinite chill roll. Generally use static or dynamic cast.
Chmical Composition
|
Grade |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Mo |
Mg |
||
|
Ccentrifugal |
Static |
SGA I |
2.90-3.60 |
1.40-2.20 |
0.40-1.00 |
≤0.15 |
≤0.030 |
0.10-0.60 |
1.50-2.00 |
0.20-0.80 |
≥0.04 |
|
SGA II |
2.90-3.60 |
1.40-2.20 |
0.40-1.00 |
≤0.15 |
≤0.030 |
0.20-1.00 |
2.01-2.50 |
0.20-0.80 |
≥0.04 |
||
|
CORE |
2.90-3.70 |
1.40-2.60 |
0.50-1.00 |
≤0.15 |
≤0.030 |
≤0.08 |
≤0.15 |
≤0.50 |
≥0.04 |
||
Mechanical Properties
|
Tensile Strength (kg/mm²） |
≥520 |
|
Bending Strength (kg/mm²） |
970-1380 |
|
Elongation (%) |
0.2-0.5 |
Metallography Organism
Company Information
Our main products are:dia250-dia1000 the following material as a whole and centrifugal cast iron, cast steel roll and roll rings, and supporting roll. Products sold throughout 26 province and autonomous regions, and by the users of praise.

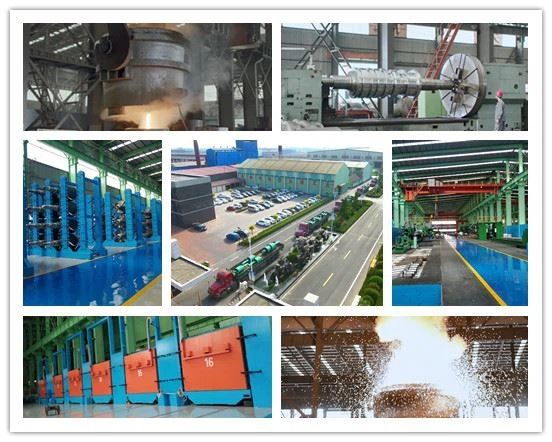

Work shop
We have turning lathe,milling, planing, grinding, drilling dozens of various type of lathe, fully equipped to meet different user requirements for roll machining.
Our company has advanced chemical analysis and physical properties testing equipment, such as : photoelectric direct reading spectormeter, carbon and sulfur analyzer, digital high-resolution desktop optical microscope, ultrasonic flaw detector and so on, for the production of high-quality products and provide support and protection.

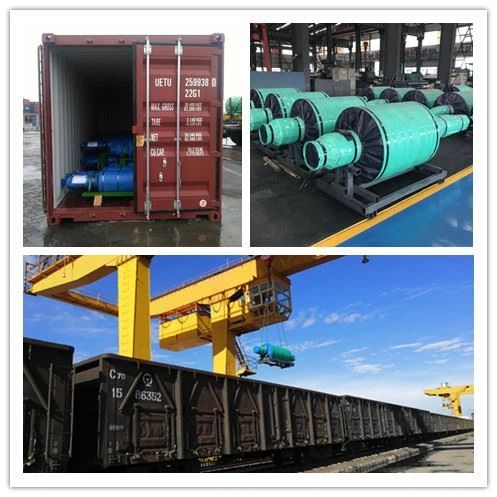

Package & Shipping
Our Advantage
Advanced technical process from smelting steel to forging and heat treat guarantees the product quality.
Closed relationship with several famous stated enterprises guarantee "in-time delivery" and competitive price.
Excellent product quality and service, competitive price, "in-time" delivery.
