Indefinite chill cast iron is a material between chill cast iron and grey cast iron. The work layer of this material consists of flake graphites, while the depth below barrel surface increases, the amount of graphites will increase too, but the hardness will decrease.
Product Information
ICDP rolls of this material have excellent wear resistance, thermal crack resistance, spall resistance and seizure properties. The working layer of the ICDP roller is composed of flake graphite, and as the depth below the surface of the cylinder increases, the amount of graphite increases, but the hardness decreases. According to different rolling conditions, by adjusting the chemical composition, the roll matrix can be made into pearlite, bainite, martensite or tempered sorbite. The grade of ICDP ROLL is between chilled cast iron and grey cast iron.
Features
With the advancement of roll technology, ICDP rolls have been completely or partially changed from high-chromium cast iron to high-speed steel. When ordinary ICDP work rolls are used to small diameters, they are no longer suitable for high surface quality hot-rolled coils. At present, the improved ICDP roller is widely used in the world.
About us
We have directly or indirectly supplied many rolls and equipment to the world famous steel plants，such as Danieli, TATA steel, ArcelorMittal, Sail, and so on.
Tonnage for 12/14/16/18 deformed bars
|
Stand |
Size |
Material |
Hardness |
Working layer |
The thickness of the grinding per time
|
Tonnage per groove（Tons） |
|
1H |
∅550 |
ICDP Rolls |
HSD 55--65 |
80mm |
≤15mm
|
≥45000 |
|
2H |
≥45000 |
|||||
|
3H |
≥45000 |
|||||
|
4H |
≥45000 |
|||||
|
5H |
≥45000 |
|||||
|
6H |
∅450 |
Infinite chilled ductile iron |
HSD 55--65 |
80mm |
≤8mm |
≥20000 |
|
7H |
≥20000 |
|||||
|
8H |
∅350 |
Nickel chromium molybdenum Ball mill infinite chilled cast iron （Ⅱ） |
HSD 60--70 |
60mm |
≤5mm |
≥8000 |
|
9H |
||||||
|
10H |
||||||
|
11H |
||||||
|
12H |
∅300 |
SGA(Centrifugal) |
HSD 65--75 |
50mm |
≤2mm |
≥4000 |
|
13H |
≥4000 |
|||||
|
14H |
≥4000 |
|||||
|
15H |
≥4000 |
|||||
|
16H |
∅300 |
HSS |
HSD 83--88 |
50mm |
≤3mm |
≥2000 |
|
17H |
∅300 |
HSS |
HSD 83--88 |
50mm |
≤3mm |
≥1000 |
Our products
Apllication
ICDP rolls are primarily used in the section, wire, rod, strip mills, and the rolls of ICIV, ICV could be used in the hot strip, intermediate - plate an tempered mills.

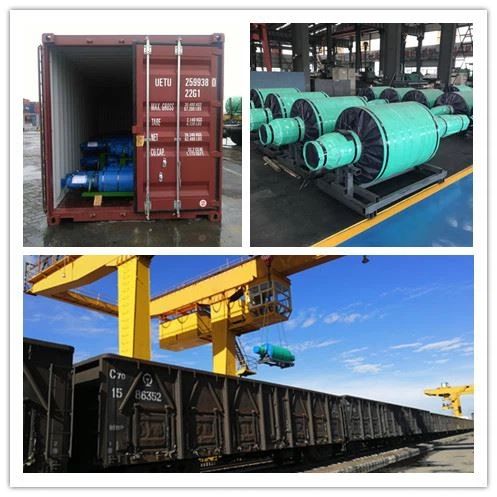

Package & Shipping
Our Advantage
1. Our company has more than twenty years of experience in the metallurgical industry.
2. We can product the rollers according to your drawings and technical requirements.
3. We also can help the customers to design and improve the quality of rollers, increase the rolling tonnage.
4. Our engineers can give you some advice on how to use the rollers.
5. We have been supplying directly or indirectly to the following customers: Arcelor Mittal, TATA Steel, Danieli, Gerdau, Sail, OMK, MMK, EVRAZ, SEVERSTAL, GJS etc.
