Brief introduction of ERW pipe mill

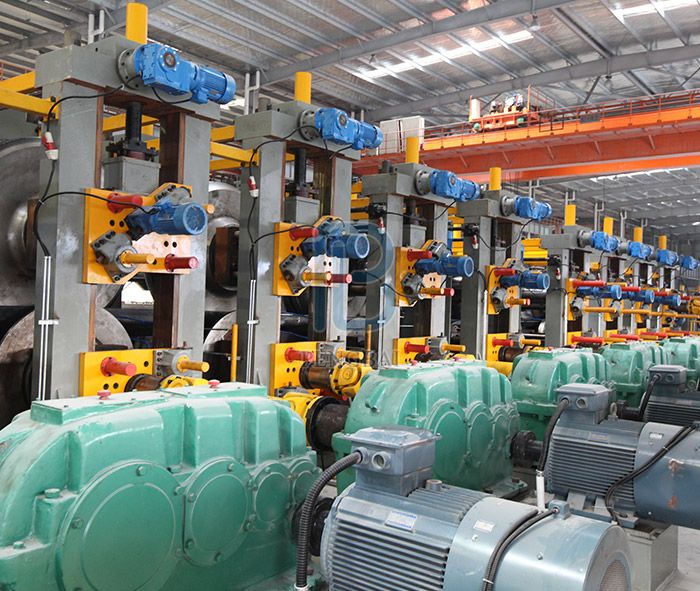

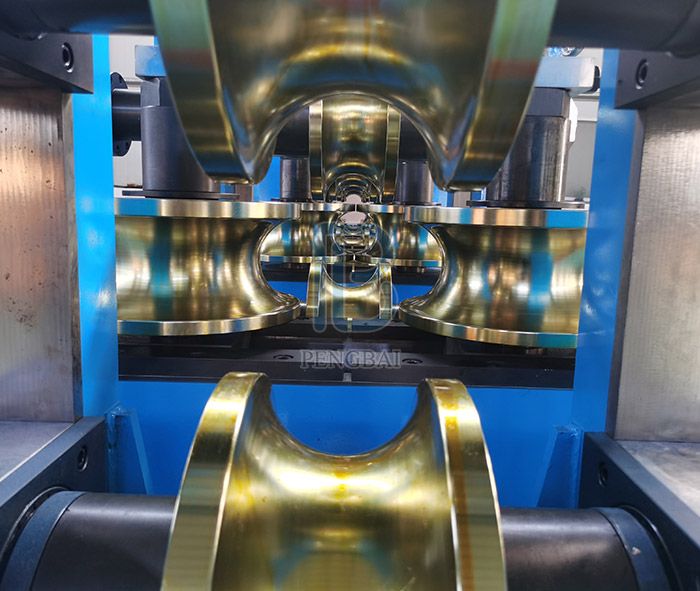

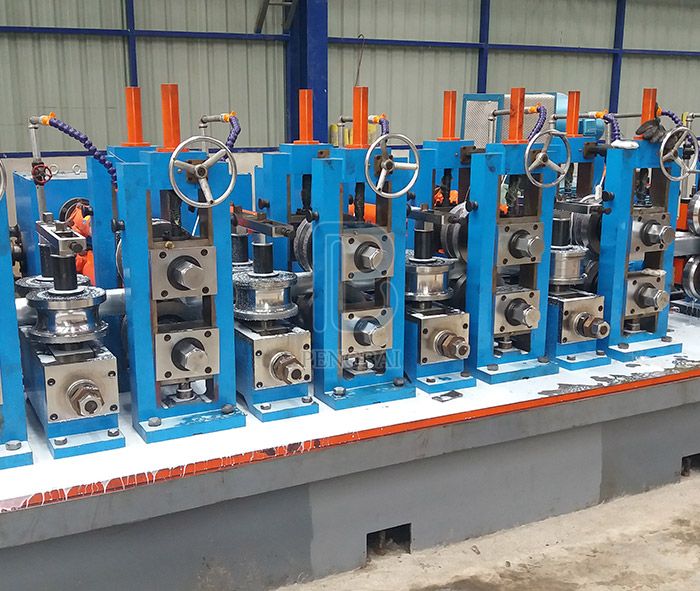

Raw material (Steel Strip) in form of a coil is uncoiled and feed into forming section passing through the equipment of entry section. Entry section enables the tube mill to run continuously by using strip joining and accumulation equipment Tube is formed in round shape passing through a set of driven and idler rollers of forming section before welding. In welding section tube is longitudinally welded by using high frequency induction welding method. Outside bead is removed and formed in shape of scrap. The weld seam is ironed and tube passes through the cooling section. In sizing section, tube is formed to specified size and converted into specified shape. After sizing. tube is cut to specified length by using flying cutting equipment and delivered in collecting troughs passing through run out conveyor.
Function
This pipe used especially for Petroeum, Natural gas, City gas. Pipe network. Chemical Industry. Electricity Steel truss , Water and Gas pipeline is widely used for a variety of pressure pipelines.
Process flow
Coil loading-Uncoiling -Pinching & Leveling
● End Shearing -Strip joining -Strip accumulator
● Forming-HF Welding-Outside burr removal
●Water Cooling Eddy Current- Sizing & straightening -Measuring roll-Flying saw cutting-Online UT
● Seam annealer-End facing and chamfering machine -Hydro tester-pipe handing machine
