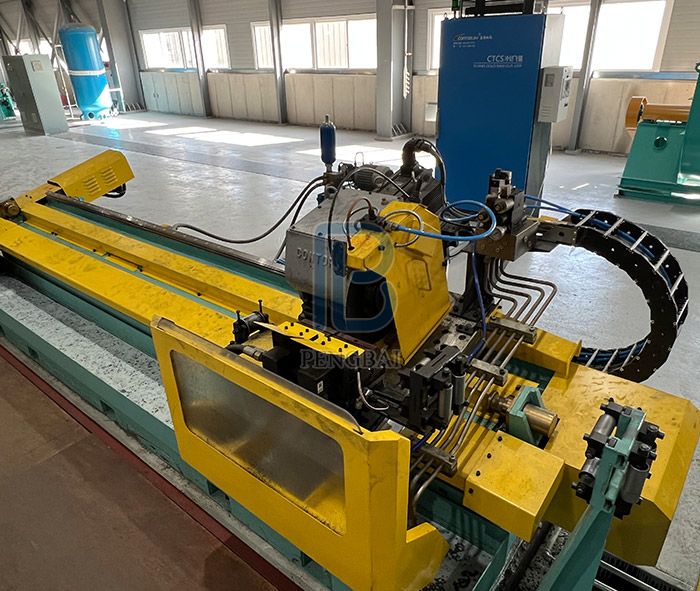

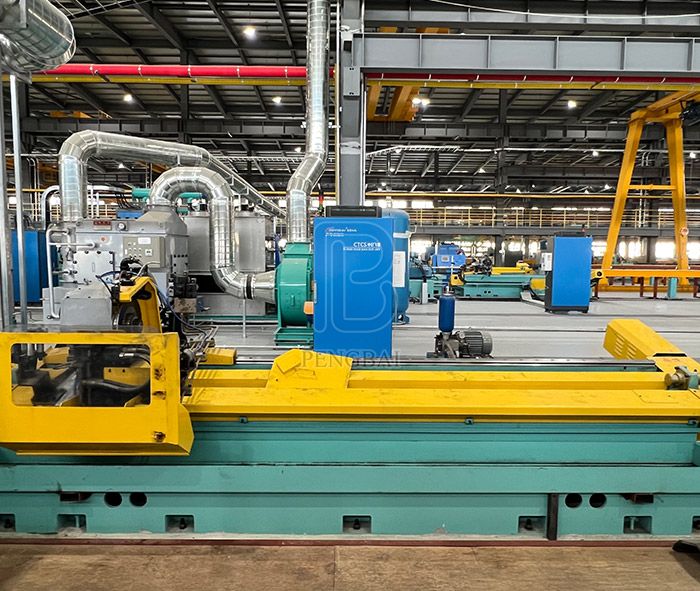

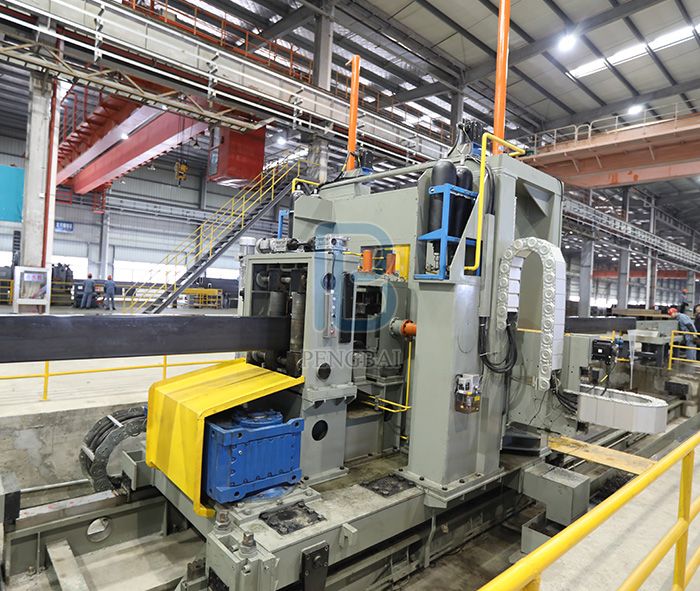

Flying Saw
Flying SawFlying SawFlying Saw

Flying Saw

Flying Saw is to cut the pipe into a given length while it is traveling. In order to operate continuously, it is necessary to synchronize the cut off machine with the speed of the tube, so as to accurately keep the tubes length during the cutting cycle.

Share

Flying Saw is to cut the pipe into a given length while it is traveling. In order to operate continuously, it is necessary to synchronize the cut off machine with the speed of the tube, so as to accurately keep the tubes length during the cutting cycle. Synchronizing with the speed of the tube can prevent damage to the blade as well as preventing inaccurate tube lengths which could cause loss and waste of product. We provide Type cut off machines to completely avoid this problem.



● Flying Friction Saw

● Flying Cold Saw

● Milling type flying saw
